In some installations there may be requirements to group loads in a panel by type. The eGauge meter allows for metering of individual loads which can then be totaled by type. Use this example for guidance.

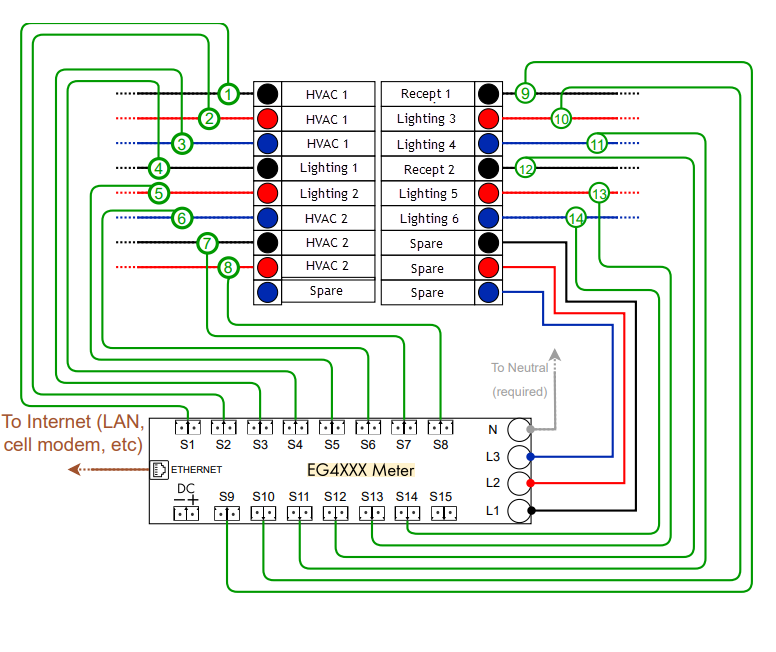

Example Wiring Diagram

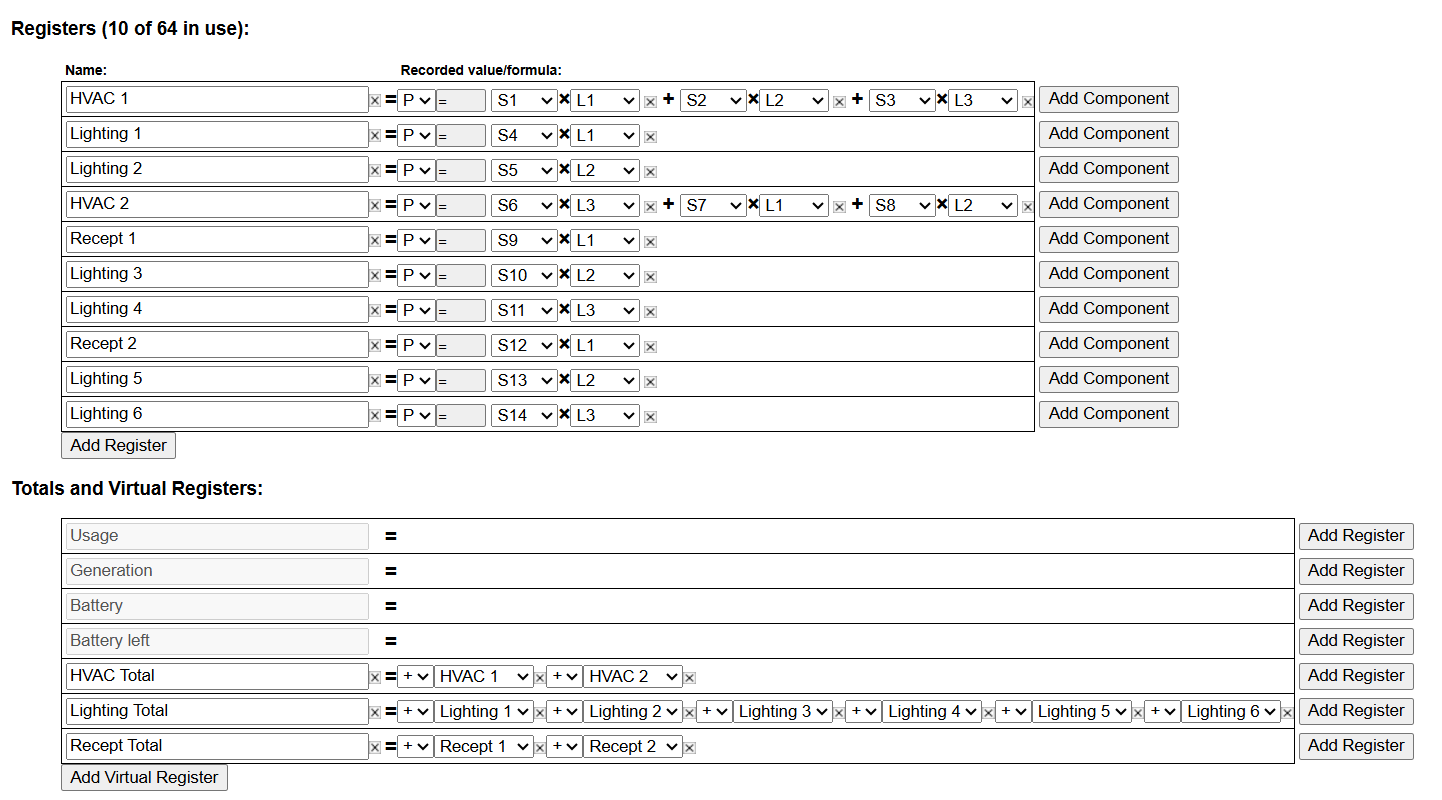

Registers
In this example, each panel sub load is configured individually as a physical register and totaling by type is done in the Totals and Virtual Registers section of the configuration settings. Take note of the phasing in the example registers below and how it relates to the wiring diagram above.
